GAS TORCH and FIRE BOWL / FIRE & WATER KITS

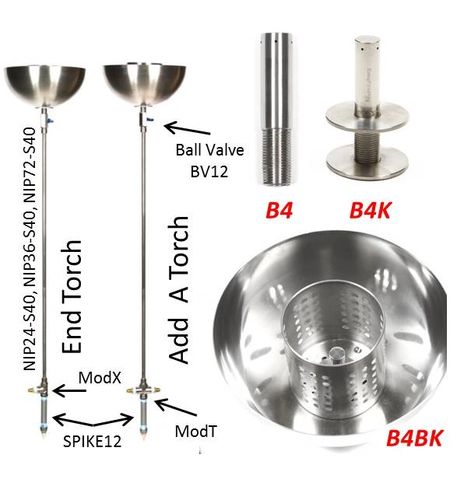

1. 4 Our Our Torch Burner; Widespread Flames "Outward" from Burner Via 5 Ports
2. Bowl5-DIffuser - With 1" Hole Cut in Bottom. Makes Virtually any Use of B4 Burner to be "Wind-Proof"
3. Bowl11-FireBowl - 11" Stainless Torch Bowl for Our B4BK Kit w/ Main 1" Hole and Drain Hole Drilled in Bottom
4. B4BK  11" Stainless Fire Bowl Setup w/ Torch Burner Mounted Inside Them
5. BV12  Ball Valve Usually Mounted Below Bowl to Control Flame On/ Off/ Intensity
6. PHA12FF  Low Profile Coupling to Attach Bowl/ Burner to Shaft in Absence of BV12
7. NIP12-S40  12 inch Long Nipple x 1" Diam; Schedule 40 Stainless Shaft Polished by Default (Un-Polished as OPTION)
8. NIP24-S40  24 inch Long Nipple x 1" Diam; Schedule 40 Stainless Shaft Polished by Default (Un-Polished as OPTION)
9. NIP36-S40  36 inch Long Nipple x 1" Diam; Schedule 40 Stainless Shaft Polished by Default (Un-Polished as OPTION)
10. NIP72-S40  72 inch Long Nipple x 1" Diam; Schedule 40 Stainless Shaft Polished by Default (Un-Polished as OPTION)
11. MODT  3+1 Cross for IN-LINE TORCH. Gas thru Left, Top and Right, Spike in Bottom
12. MODX  2+1 TEE for END/ SINGLE TORCH. Gas thru Top and Side, Spike in Bottom
13. TF3  TEE to Connect Shaft to Gas for INLINE TORCH When NOT Using SPIKE12
14. 90F2  90 to Connect Shaft to Gas for END/ SINGLE TORCH When NOT Using SPIKE12
15. SPIKE12  12 inch Long Solid Bar Stock Spike to Mount Torches to Ground
16. PHA12M  1/2 Male x 3/8 Flare Fitting to Connect Gas Hoses to the MODT, MODX, TF3, or 90F2

WATER SCUPPERS:  Constructed of heavy duty stainless steel to withstand years of use. They can be powder coated or painted by any of your local shops and this allows us to provide best price as opposed to offering many colors. We have 6 models at this time; in 3 Different sizes; (3) Without front "lips" (flanges) and (3) With front lips (designated with an "L" after the model).

The Lips are around the front left, right and bottom, are 1 inch wide, are the same polish as the stainless Scuppers and serve as a Drip Guard, for Easy Mounting and A Polished Look. If you look at the photos the scupper actually sits about 1/4 inch thru the Lips so the water doesnt flow backwards into your bowl or creation.

• SCUP24R  Stainless Water Scupper/ Waterfall Spillway: 3.25″w (bottom) 5.5″w (top) 4″ long/ deep; 3/4 Female Pipe Water Inlet
• SCUP24RL  Stainless Water Scupper/ Waterfall Spillway w/ Lip: 3.25″w (bottom) 5.5″w (top) 4″ long/ deep; 3/4 Female Pipe Water Inlet
• SCUP24S  Stainless Water Scupper/ Waterfall Spillway: 3.5″W (bottom) 4.75″W (top) 4″ long/ deep; 3/4 Female Pipe Water Inlet
• SCUP24SL  Stainless Water Scupper/ Waterfall Spillway w/ Lip: 3.5″W (bottom) 4.75″W (top) 4″ long/ deep; 3/4 Female Pipe Water Inlet
• SCUP32B  Stainless Water Scupper/ Waterfall Spillway: 5.75″W (bottom) 6.75″W (top) 4" long/ deep; 3/4 Female Pipe Water Inlet
• SCUP32BL  Stainless Water Scupper/ Waterfall Spillway w/ Lip: 5.75″W (bottom) 6.75″W (top) 4" long/ deep; 3/4 Female Pipe Water Inlet

SCUPPER HOSES:   Constructed of flexible stainless steel with welded ends and no plastic or "melt-able" materials inside. Made to withstand the heat of a fire pit on top of it (but made for water, not gas).

We have 4 different models of water hoses at this time; in 2 different sizes. We feature 24 inch and 32 inch lengths; and both are offered in Male x Male 3/4 inch (MxM) or in Male x Female (MxF) 3/4 inch.
